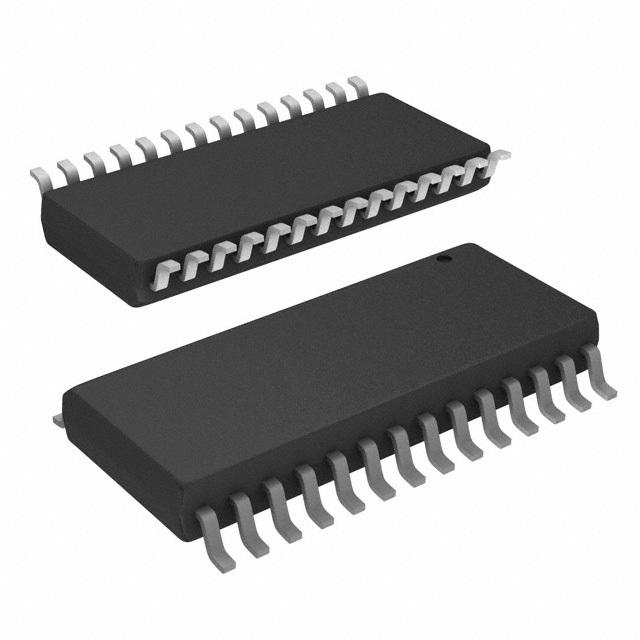

DAC712U Images

DAC712U Images are for reference only, See Product Specifications

DAC712U

Part Number DAC712U
Manufacturer Texas Instruments
Description IC 16-BIT D/A CONVERTER 28-SOIC
Data sheet DAC712U.pdf
Category Integrated Circuits (ICs)
Family Data Acquisition - Digital to Analog Converters (DAC)
Series -
Request a Quote

Buy the DAC712U Texas Instruments on Chip Source Co., LIMITED,we are Texas Instruments Corporation distributor,we sales new&original and offer 24 hours service,180 days warranty date, send the DAC712U within 24 hours,please contact our sales team or send email to [email protected] Hope we can cooperate in the future.

Specifications

Part Status Active
Number of Bits 16
Number of D/A Converters 1
Settling Time 6µs (Typ)
Output Type Voltage - Buffered
Differential Output No
Data Interface Parallel
Reference Type Internal
Voltage - Supply, Analog ±11.4 V ~ 16.5 V
Voltage - Supply, Digital -
INL/DNL (LSB) ±8 (Max), ±8 (Max)
Architecture R-2R
Operating Temperature -40°C ~ 85°C
Package / Case 28-SOIC (0.295", 7.50mm Width)
Supplier Device Package 28-SOIC
Shipment UPS/EMS/DHL/FedEx Express.
Condtion New original factory.
RFQ Email [email protected] or Inquires online
