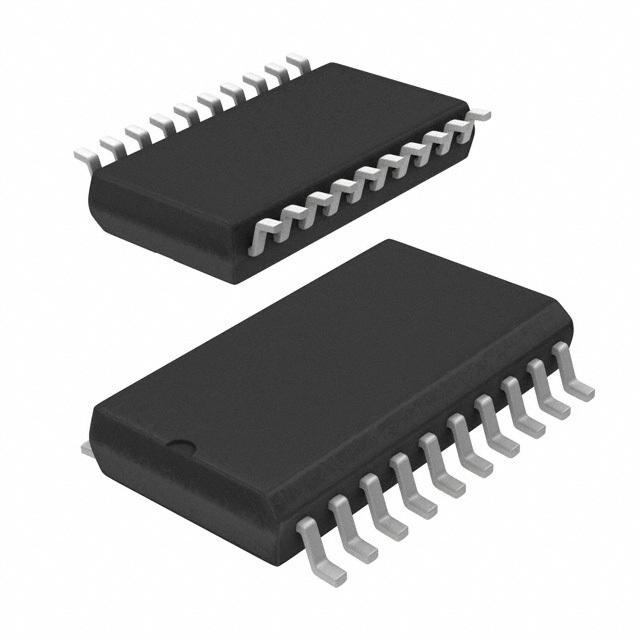

Part Number | TLC1543CDWR |
---|---|
Manufacturer | Texas Instruments |
Description | IC 10BIT 38 KSPS ADC S/O 20-SOIC |
Data sheet | ![]() |
Category | Integrated Circuits (ICs) |
Family | Data Acquisition - Analog to Digital Converters (ADC) |
Series | - |
Buy the TLC1543CDWR Texas Instruments on Chip Source Co., LIMITED,we are Texas Instruments Corporation distributor,we sales new&original and offer 24 hours service,180 days warranty date, send the TLC1543CDWR within 24 hours,please contact our sales team or send email to [email protected] Hope we can cooperate in the future.
Part Status | Active |
---|---|
Number of Bits | 10 |
Sampling Rate (Per Second) | 38k |
Number of Inputs | 11 |
Input Type | Single Ended |
Data Interface | SPI |
Configuration | MUX-S/H-ADC |
Ratio - S/H:ADC | 1:1 |
Number of A/D Converters | 1 |
Architecture | SAR |
Reference Type | External |
Voltage - Supply, Analog | 5V |
Voltage - Supply, Digital | 5V |
Features | Selectable Address |
Operating Temperature | 0°C ~ 70°C |
Package / Case | 20-SOIC (0.295", 7.50mm Width) |
Supplier Device Package | 20-SOIC |
Shipment | UPS/EMS/DHL/FedEx Express. |
Condtion | New original factory. |
RFQ Email | [email protected] or Inquires online |
