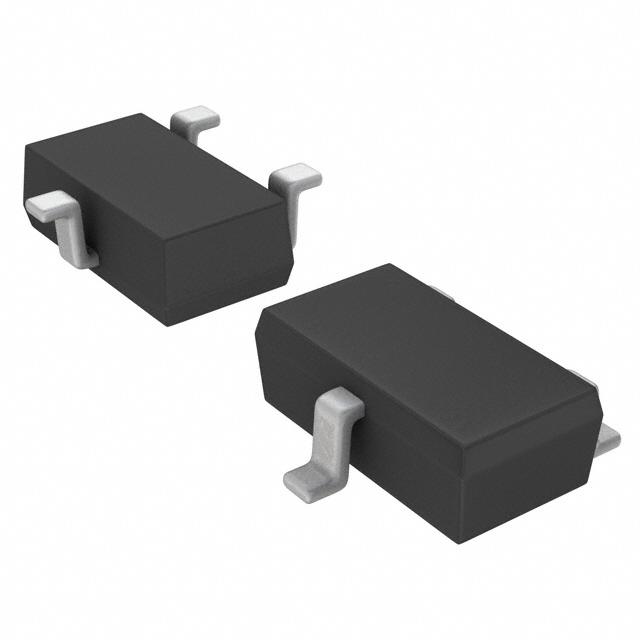

RSR030N06TL Images are for reference only, See Product Specifications
| Part Number | RSR030N06TL |
|---|---|
| Manufacturer | Rohm Semiconductor |
| Description | MOSFET N-CH 60V 3A TSMT3 |
| Data sheet |  RSR030N06TL.pdf |
| Category | Discrete Semiconductor Products |
| Family | Transistors - FETs, MOSFETs - Single |
| Series | - |
Buy the RSR030N06TL Rohm Semiconductor on Chip Source Co., LIMITED,we are Rohm Semiconductor Corporation distributor,we sales new&original and offer 24 hours service,180 days warranty date, send the RSR030N06TL within 24 hours,please contact our sales team or send email to [email protected] Hope we can cooperate in the future.
| Part Status | Active |
|---|---|
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 60V |
| Current - Continuous Drain (Id) @ 25°C | 3A (Ta) |
| Drive Voltage (Max Rds On,Min Rds On) | 4V, 10V |
| Vgs(th) (Max) @ Id | 2.5V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | - |
| Input Capacitance (Ciss) (Max) @ Vds | 380pF @ 10V |
| Vgs (Max) | ±20V |
| FET Feature | - |
| Power Dissipation (Max) | 540mW (Ta) |
| Rds On (Max) @ Id, Vgs | 85 mOhm @ 3A, 10V |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | TSMT3 |
| Package / Case | SC-96 |
| Shipment | UPS/EMS/DHL/FedEx Express. |
| Condtion | New original factory. |
| RFQ Email | [email protected] or Inquires online |
