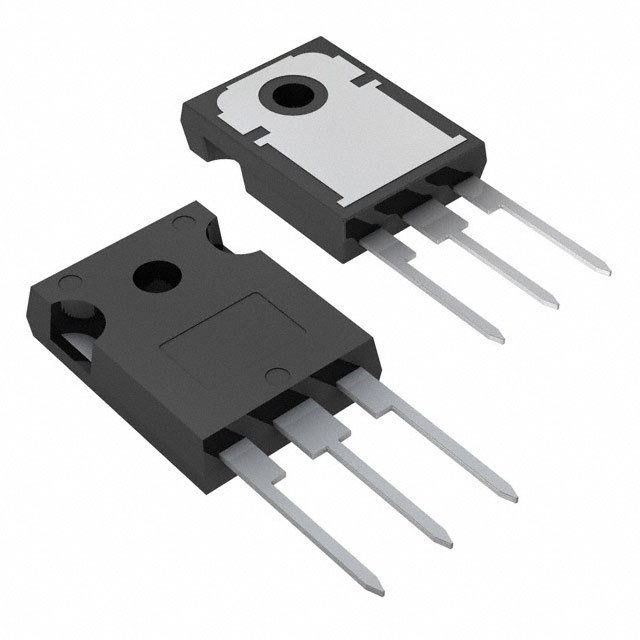

SCT30N120

9 Reviews/Write A Review
Buy the SCT30N120 STMicroelectronics on Chip Source Co., LIMITED,we are STMicroelectronics Corporation distributor,we sales new&original and offer 24 hours service,30 days warranty date, send the SCT30N120 within 24 hours,please contact our sales team or send email to [email protected] Hope we can cooperate in the future.
  • Manufacturer: STMicroelectronics
  • Description: MOSFET N-CH 1200V 45A HIP247
  • Category: Discrete Semiconductor Products
  • Family: Transistors - FETs, MOSFETs - Single
  • Series: -
Availability: In Stock
Please send RFQ , we will respond immediately.
Specifications Description Reviews

Specifications

Part Status
Active
FET Type
N-Channel
Technology
SiCFET (Silicon Carbide)
Drain to Source Voltage (Vdss)
1200V (1.2kV)
Current - Continuous Drain (Id) @ 25°C
40A (Tc)
Drive Voltage (Max Rds On,Min Rds On)
20V
Vgs(th) (Max) @ Id
2.6V @ 1mA (Typ)
Gate Charge (Qg) (Max) @ Vgs
105nC @ 20V
Input Capacitance (Ciss) (Max) @ Vds
1700pF @ 400V
Vgs (Max)
+25V, -10V
FET Feature
-
Power Dissipation (Max)
270W (Tc)
Rds On (Max) @ Id, Vgs
100 mOhm @ 20A, 20V
Operating Temperature
-55°C ~ 200°C (TJ)
Mounting Type
Through Hole
Supplier Device Package
HiP247™
Package / Case
TO-247-3
Shipment
UPS/EMS/DHL/FedEx Express.
Condtion
New original factory.
RFQ Email
[email protected] or Inquires online
Information on technical characteristics, the delivery set, the country of manufacture and the appearance of the goods is for reference only and is based on the latest information available at the time of publication.
