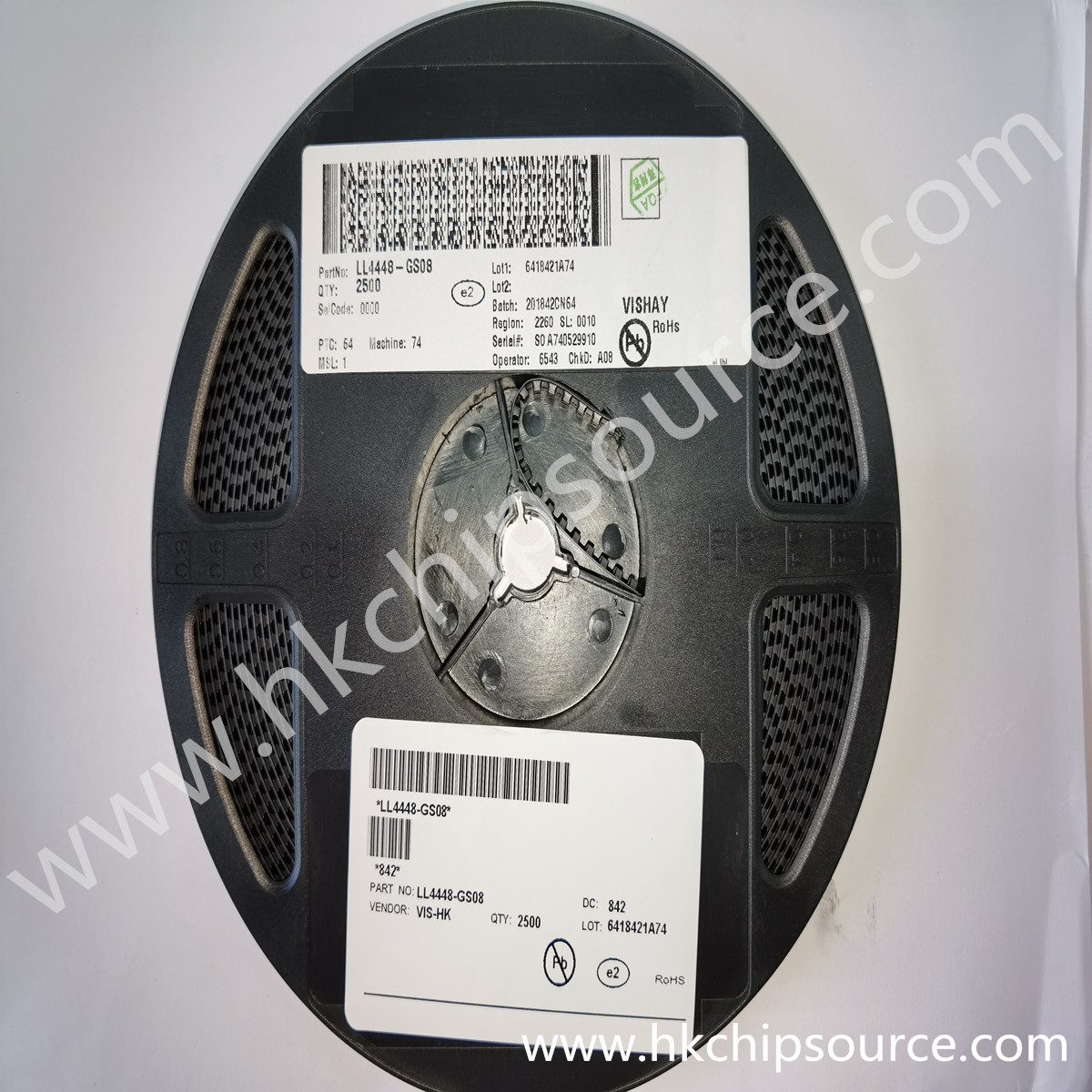

LL4448-GS08 Images

LL4448-GS08 Images are for reference only, See Product Specifications


Part Number LL4448-GS08
Manufacturer Vishay Semiconductor Diodes Division
Description DIODE GEN PURP 75V 150MA SOD80
Data sheet LL4448-GS08.pdf
Category Discrete Semiconductor Products
Family Diodes - Rectifiers - Single
Series -
Request a Quote

Buy the LL4448-GS08 Vishay Semiconductor Diodes Division on Chip Source Co., LIMITED,we are Vishay Semiconductor Diodes Division Corporation distributor,we sales new&original and offer 24 hours service,180 days warranty date, send the LL4448-GS08 within 24 hours,please contact our sales team or send email to [email protected] Hope we can cooperate in the future.


Part Status Active
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 75V
Current - Average Rectified (Io) 150mA
Voltage - Forward (Vf) (Max) @ If 720mV @ 5mA
Speed Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr) 8ns
Current - Reverse Leakage @ Vr 5µA @ 75V
Capacitance @ Vr, F 4pF @ 0V, 1MHz
Mounting Type Surface Mount
Package / Case DO-213AC, MINI-MELF, SOD-80
Supplier Device Package SOD-80 MiniMELF
Operating Temperature - Junction -65°C ~ 175°C
Shipment UPS/EMS/DHL/FedEx Express.
Condtion New original factory.
RFQ Email [email protected] or Inquires online
