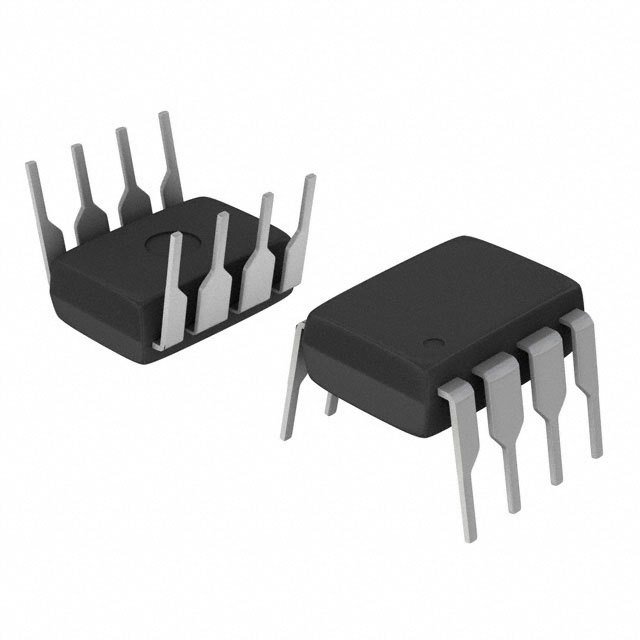

Part Number | UC3610N |
---|---|
Manufacturer | Texas Instruments |
Description | IC SCHOTTKY DIODE BRIDGE 8-DIP |
Data sheet | ![]() |
Category | Discrete Semiconductor Products |
Family | Diodes - Bridge Rectifiers |
Series | - |
Buy the UC3610N Texas Instruments on Chip Source Co., LIMITED,we are Texas Instruments Corporation distributor,we sales new&original and offer 24 hours service,180 days warranty date, send the UC3610N within 24 hours,please contact our sales team or send email to [email protected]com Hope we can cooperate in the future.
Part Status | Active |
---|---|
Diode Type | Single Phase |
Technology | Schottky |
Voltage - Peak Reverse (Max) | 50V |
Current - Average Rectified (Io) | 3A |
Voltage - Forward (Vf) (Max) @ If | 1.3V @ 1A |
Current - Reverse Leakage @ Vr | 100µA @ 40V |
Operating Temperature | 0°C ~ 70°C (TA) |
Mounting Type | Through Hole |
Package / Case | 8-DIP (0.300", 7.62mm) |
Supplier Device Package | 8-PDIP |
Shipment | UPS/EMS/DHL/FedEx Express. |
Condtion | New original factory. |
RFQ Email | [email protected] or Inquires online |
