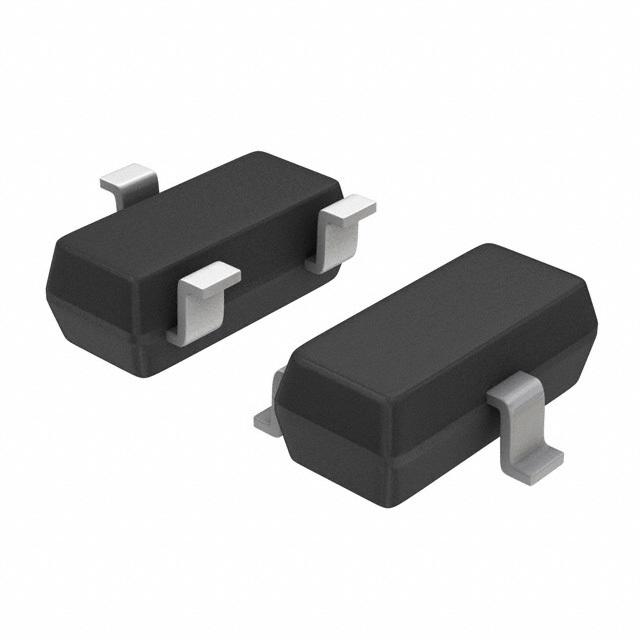

MMBT3906LT3G Images are for reference only, See Product Specifications
| Part Number | MMBT3906LT3G |
|---|---|
| Manufacturer | ON Semiconductor |
| Description | TRANS PNP 40V 0.2A SOT-23 |
| Data sheet |  MMBT3906LT3G.pdf |
| Category | Discrete Semiconductor Products |
| Family | Transistors - Bipolar (BJT) - Single |
| Series | - |
Buy the MMBT3906LT3G ON Semiconductor on Chip Source Co., LIMITED,we are ON Semiconductor Corporation distributor,we sales new&original and offer 24 hours service,180 days warranty date, send the MMBT3906LT3G within 24 hours,please contact our sales team or send email to [email protected] Hope we can cooperate in the future.
| Part Status | Active |
|---|---|
| Transistor Type | PNP |
| Current - Collector (Ic) (Max) | 200mA |
| Voltage - Collector Emitter Breakdown (Max) | 40V |
| Vce Saturation (Max) @ Ib, Ic | 400mV @ 5mA, 50mA |
| Current - Collector Cutoff (Max) | - |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 100 @ 10mA, 1V |
| Power - Max | 300mW |
| Frequency - Transition | 250MHz |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | SOT-23-3 (TO-236) |
| Shipment | UPS/EMS/DHL/FedEx Express. |
| Condtion | New original factory. |
| RFQ Email | [email protected] or Inquires online |
