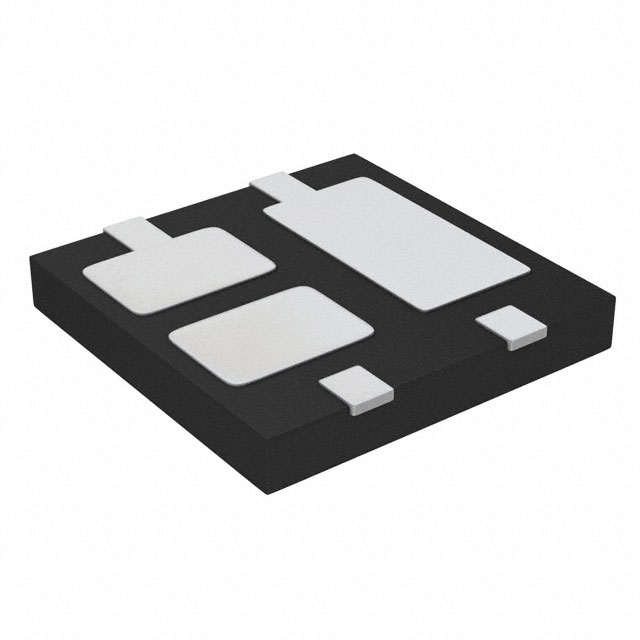

NSR1030QMUTAG Images

NSR1030QMUTAG Images are for reference only, See Product Specifications

NSR1030QMUTAG

Part Number NSR1030QMUTAG
Manufacturer ON Semiconductor
Description RECT BRIDGE SCHTKY 30V 1A UDFN4
Data sheet NSR1030QMUTAG.pdf
Category Discrete Semiconductor Products
Family Diodes - Bridge Rectifiers
Series -
Request a Quote

Buy the NSR1030QMUTAG ON Semiconductor on Chip Source Co., LIMITED,we are ON Semiconductor Corporation distributor,we sales new&original and offer 24 hours service,180 days warranty date, send the NSR1030QMUTAG within 24 hours,please contact our sales team or send email to [email protected] Hope we can cooperate in the future.

Specifications

Part Status Active
Diode Type Single Phase
Technology Schottky
Voltage - Peak Reverse (Max) 30V
Current - Average Rectified (Io) 1A
Voltage - Forward (Vf) (Max) @ If 600mV @ 1A
Current - Reverse Leakage @ Vr 20µA @ 30V
Operating Temperature 125°C (TJ)
Mounting Type Surface Mount
Package / Case 4-UDFN Exposed Pad
Supplier Device Package 4-UDFN (3x3)
Shipment UPS/EMS/DHL/FedEx Express.
Condtion New original factory.
RFQ Email [email protected] or Inquires online
