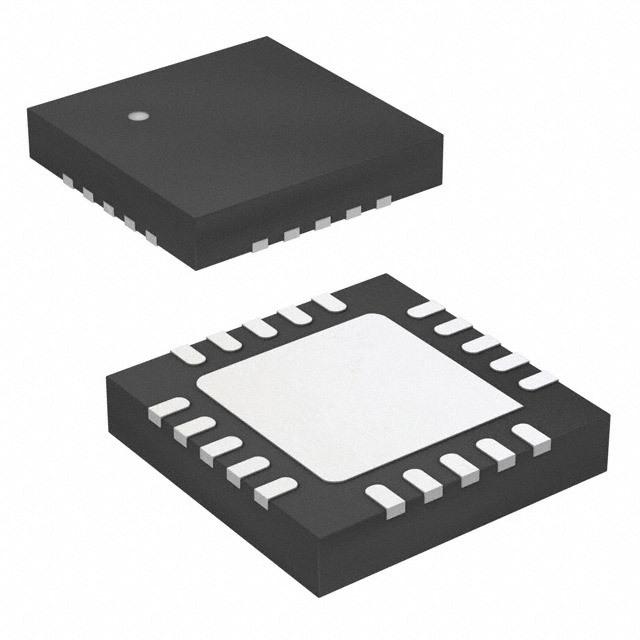

ATTINY2313-20MU Images

ATTINY2313-20MU Images are for reference only, See Product Specifications

ATTINY2313-20MU

Part Number ATTINY2313-20MU
Manufacturer Microchip Technology
Description IC MCU 8BIT 2KB FLASH 20QFN
Data sheet ATTINY2313-20MU.pdf
Category Integrated Circuits (ICs)
Family Embedded - Microcontrollers
Series AVR® ATtiny
Request a Quote

Buy the ATTINY2313-20MU Microchip Technology on Chip Source Co., LIMITED,we are Microchip Technology Corporation distributor,we sales new&original and offer 24 hours service,180 days warranty date, send the ATTINY2313-20MU within 24 hours,please contact our sales team or send email to [email protected] Hope we can cooperate in the future.

Specifications

Part Status Active
Core Processor AVR
Core Size 8-Bit
Speed 20MHz
Connectivity SPI, UART/USART
Peripherals Brown-out Detect/Reset, POR, PWM, WDT
Number of I/O 18
Program Memory Size 2KB (1K x 16)
Program Memory Type FLASH
EEPROM Size 128 x 8
RAM Size 128 x 8
Voltage - Supply (Vcc/Vdd) 2.7 V ~ 5.5 V
Data Converters -
Oscillator Type Internal
Operating Temperature -40°C ~ 85°C (TA)
Package / Case 20-WFQFN Exposed Pad
Supplier Device Package 20-QFN (4x4)
Shipment UPS/EMS/DHL/FedEx Express.
Condtion New original factory.
RFQ Email [email protected] or Inquires online
