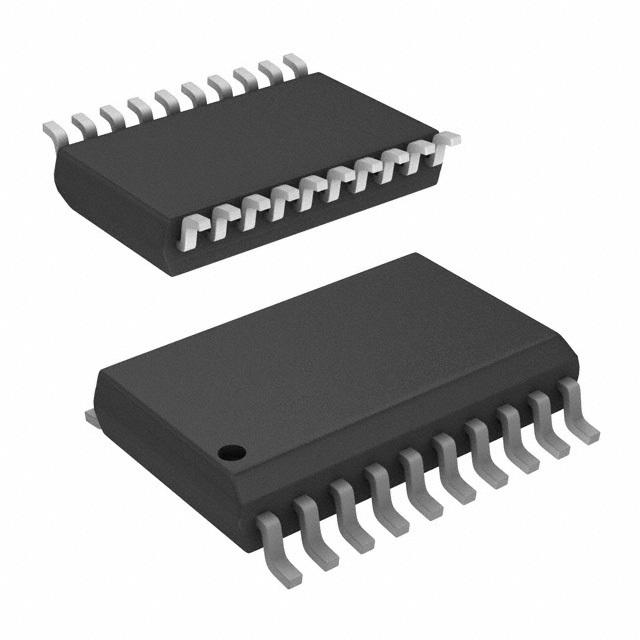

PIC16F685-I/SO Images

PIC16F685-I/SO Images are for reference only, See Product Specifications

PIC16F685-I/SO

Part Number PIC16F685-I/SO
Manufacturer Microchip Technology
Description IC MCU 8BIT 7KB FLASH 20SOIC
Data sheet PIC16F685-I/SO.pdf
Category Integrated Circuits (ICs)
Family Embedded - Microcontrollers
Series PIC® 16F
Request a Quote

Buy the PIC16F685-I/SO Microchip Technology on Chip Source Co., LIMITED,we are Microchip Technology Corporation distributor,we sales new&original and offer 24 hours service,180 days warranty date, send the PIC16F685-I/SO within 24 hours,please contact our sales team or send email to [email protected] Hope we can cooperate in the future.

Specifications

Part Status Active
Core Processor PIC
Core Size 8-Bit
Speed 20MHz
Connectivity -
Peripherals Brown-out Detect/Reset, POR, PWM, WDT
Number of I/O 18
Program Memory Size 7KB (4K x 14)
Program Memory Type FLASH
EEPROM Size 256 x 8
RAM Size 256 x 8
Voltage - Supply (Vcc/Vdd) 2 V ~ 5.5 V
Data Converters A/D 12x10b
Oscillator Type Internal
Operating Temperature -40°C ~ 85°C (TA)
Package / Case 20-SOIC (0.295", 7.50mm Width)
Supplier Device Package 20-SOIC
Shipment UPS/EMS/DHL/FedEx Express.
Condtion New original factory.
RFQ Email [email protected] or Inquires online
