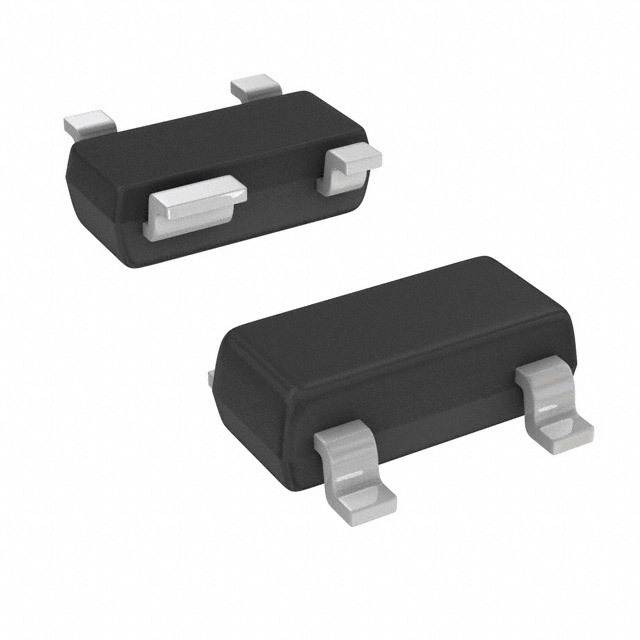

BFU520XAR Images

BFU520XAR Images are for reference only, See Product Specifications


Part Number BFU520XAR
Manufacturer NXP USA Inc.
Description TRANS RF NPN 12V 30MA SOT-143B
Data sheet BFU520XAR.pdf
Category Discrete Semiconductor Products
Family Transistors - Bipolar (BJT) - RF
Series Automotive, AEC-Q101
Request a Quote

Buy the BFU520XAR NXP USA Inc. on Chip Source Co., LIMITED,we are NXP USA Inc. Corporation distributor,we sales new&original and offer 24 hours service,180 days warranty date, send the BFU520XAR within 24 hours,please contact our sales team or send email to [email protected] Hope we can cooperate in the future.


Part Status Active
Transistor Type NPN
Voltage - Collector Emitter Breakdown (Max) 12V
Frequency - Transition 10.5GHz
Noise Figure (dB Typ @ f) 0.7dB @ 900MHz
Gain 20dB
Power - Max 450mW
DC Current Gain (hFE) (Min) @ Ic, Vce 60 @ 5mA, 8V
Current - Collector (Ic) (Max) 30mA
Operating Temperature -40°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case TO-253-4, TO-253AA
Supplier Device Package SOT-143B
Shipment UPS/EMS/DHL/FedEx Express.
Condtion New original factory.
RFQ Email [email protected] or Inquires online
