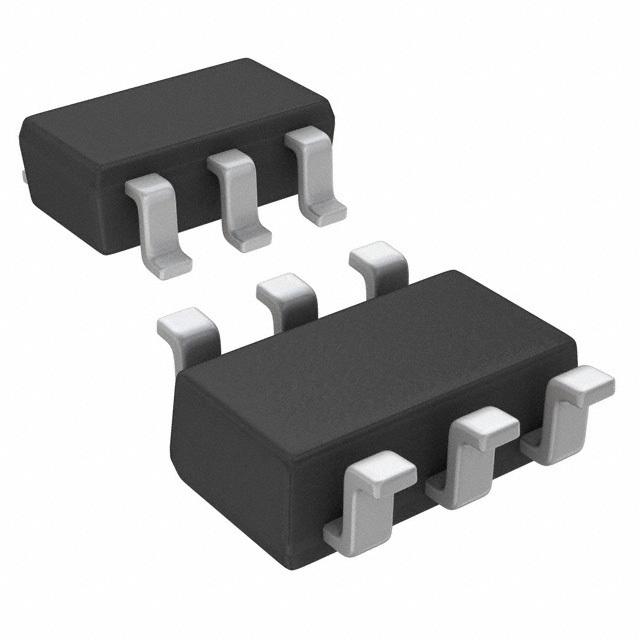

CPH6003A-TL-E Images

CPH6003A-TL-E Images are for reference only, See Product Specifications

CPH6003A-TL-E

Part Number CPH6003A-TL-E
Manufacturer ON Semiconductor
Description TRANS NPN BIPO 12V 150MA CPH6
Data sheet CPH6003A-TL-E.pdf
Category Discrete Semiconductor Products
Family Transistors - Bipolar (BJT) - RF
Series -
Request a Quote

Buy the CPH6003A-TL-E ON Semiconductor on Chip Source Co., LIMITED,we are ON Semiconductor Corporation distributor,we sales new&original and offer 24 hours service,180 days warranty date, send the CPH6003A-TL-E within 24 hours,please contact our sales team or send email to [email protected] Hope we can cooperate in the future.

Specifications

Part Status Active
Transistor Type NPN
Voltage - Collector Emitter Breakdown (Max) 12V
Frequency - Transition 7GHz
Noise Figure (dB Typ @ f) 1.8dB @ 1GHz
Gain 9dB
Power - Max 800mW
DC Current Gain (hFE) (Min) @ Ic, Vce 100 @ 50mA, 5V
Current - Collector (Ic) (Max) 150mA
Operating Temperature 150°C (TJ)
Mounting Type Surface Mount
Package / Case SOT-23-6 Thin, TSOT-23-6
Supplier Device Package 6-CPH
Shipment UPS/EMS/DHL/FedEx Express.
Condtion New original factory.
RFQ Email [email protected] or Inquires online
