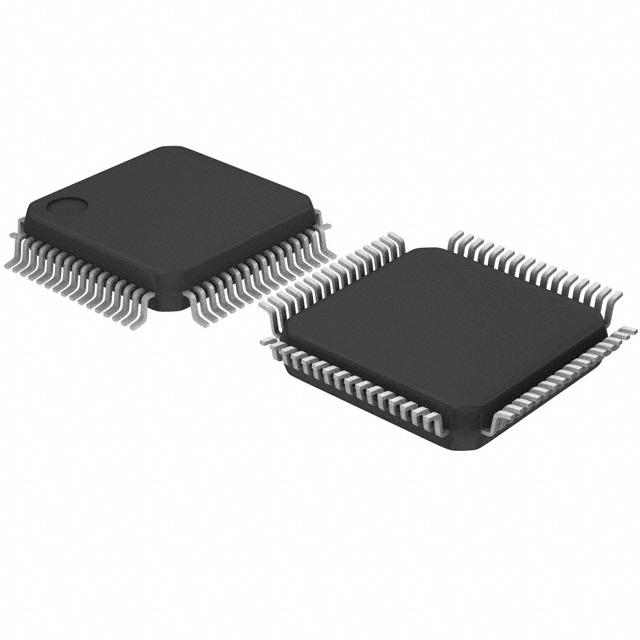

MC9S08AW60CFUE Images

MC9S08AW60CFUE Images are for reference only, See Product Specifications

MC9S08AW60CFUE

Part Number MC9S08AW60CFUE
Manufacturer NXP USA Inc.
Description IC MCU 8BIT 60KB FLASH 64QFP
Data sheet MC9S08AW60CFUE.pdf
Category Integrated Circuits (ICs)
Family Embedded - Microcontrollers
Series S08
Request a Quote

Buy the MC9S08AW60CFUE NXP USA Inc. on Chip Source Co., LIMITED,we are NXP USA Inc. Corporation distributor,we sales new&original and offer 24 hours service,180 days warranty date, send the MC9S08AW60CFUE within 24 hours,please contact our sales team or send email to [email protected] Hope we can cooperate in the future.

Specifications

Part Status Active
Core Processor S08
Core Size 8-Bit
Speed 40MHz
Connectivity I²C, SCI, SPI
Peripherals LVD, POR, PWM, WDT
Number of I/O 54
Program Memory Size 60KB (60K x 8)
Program Memory Type FLASH
EEPROM Size -
RAM Size 2K x 8
Voltage - Supply (Vcc/Vdd) 2.7 V ~ 5.5 V
Data Converters A/D 16x10b
Oscillator Type Internal
Operating Temperature -40°C ~ 85°C (TA)
Package / Case 64-QFP
Supplier Device Package 64-QFP (14x14)
Shipment UPS/EMS/DHL/FedEx Express.
Condtion New original factory.
RFQ Email [email protected] or Inquires online
