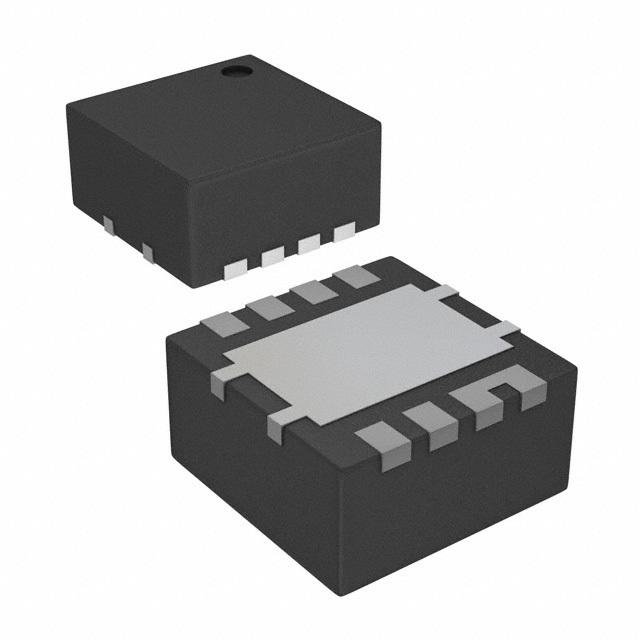

CSD87330Q3D Images

CSD87330Q3D Images are for reference only, See Product Specifications

CSD87330Q3D

Part Number CSD87330Q3D
Manufacturer Texas Instruments
Description MOSFET 2N-CH 30V 20A 8SON
Data sheet CSD87330Q3D.pdf
Category Discrete Semiconductor Products
Family Transistors - FETs, MOSFETs - Arrays
Series NexFET™
Request a Quote

Buy the CSD87330Q3D Texas Instruments on Chip Source Co., LIMITED,we are Texas Instruments Corporation distributor,we sales new&original and offer 24 hours service,180 days warranty date, send the CSD87330Q3D within 24 hours,please contact our sales team or send email to [email protected] Hope we can cooperate in the future.

Specifications

Part Status Active
FET Type 2 N-Channel (Half Bridge)
FET Feature Logic Level Gate
Drain to Source Voltage (Vdss) 30V
Current - Continuous Drain (Id) @ 25°C 20A
Rds On (Max) @ Id, Vgs -
Vgs(th) (Max) @ Id 2.1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 5.8nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds 900pF @ 15V
Power - Max 6W
Operating Temperature -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case 8-PowerLDFN
Supplier Device Package 8-LSON (3.3x3.3)
Shipment UPS/EMS/DHL/FedEx Express.
Condtion New original factory.
RFQ Email [email protected] or Inquires online
