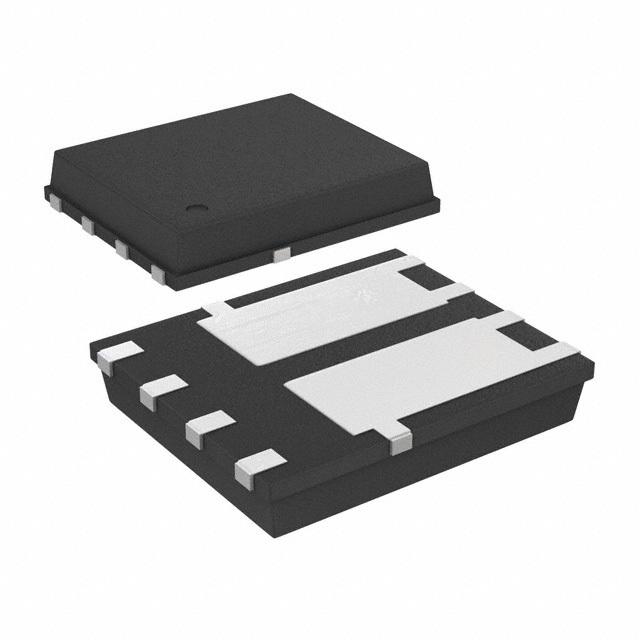

SI7272DP-T1-GE3 Images

SI7272DP-T1-GE3 Images are for reference only, See Product Specifications


Part Number SI7272DP-T1-GE3
Manufacturer Vishay Siliconix
Description MOSFET 2N-CH 30V 25A PPAK SO-8
Data sheet SI7272DP-T1-GE3.pdf
Category Discrete Semiconductor Products
Family Transistors - FETs, MOSFETs - Arrays
Series TrenchFET®
Request a Quote

Buy the SI7272DP-T1-GE3 Vishay Siliconix on Chip Source Co., LIMITED,we are Vishay Siliconix Corporation distributor,we sales new&original and offer 24 hours service,180 days warranty date, send the SI7272DP-T1-GE3 within 24 hours,please contact our sales team or send email to [email protected] Hope we can cooperate in the future.


Part Status Active
FET Type 2 N-Channel (Dual)
FET Feature Logic Level Gate
Drain to Source Voltage (Vdss) 30V
Current - Continuous Drain (Id) @ 25°C 25A
Rds On (Max) @ Id, Vgs 9.3 mOhm @ 15A, 10V
Vgs(th) (Max) @ Id 2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 26nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds 1100pF @ 15V
Power - Max 22W
Operating Temperature -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case PowerPAK® SO-8 Dual
Supplier Device Package PowerPAK® SO-8 Dual
Shipment UPS/EMS/DHL/FedEx Express.
Condtion New original factory.
RFQ Email [email protected] or Inquires online
