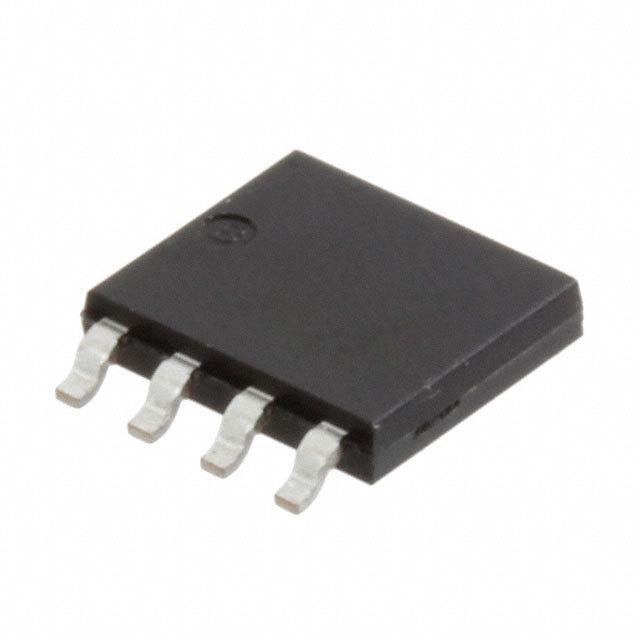

BUK9K32-100EX Images

BUK9K32-100EX Images are for reference only, See Product Specifications

BUK9K32-100EX

Part Number BUK9K32-100EX
Manufacturer Nexperia USA Inc.
Description MOSFET 2N-CH 100V 26A 56LFPAK
Data sheet BUK9K32-100EX.pdf
Category Discrete Semiconductor Products
Family Transistors - FETs, MOSFETs - Arrays
Series TrenchMOS™
Request a Quote

Buy the BUK9K32-100EX Nexperia USA Inc. on Chip Source Co., LIMITED,we are Nexperia USA Inc. Corporation distributor,we sales new&original and offer 24 hours service,180 days warranty date, send the BUK9K32-100EX within 24 hours,please contact our sales team or send email to [email protected] Hope we can cooperate in the future.

Specifications

Part Status Active
FET Type 2 N-Channel (Dual)
FET Feature Logic Level Gate
Drain to Source Voltage (Vdss) 100V
Current - Continuous Drain (Id) @ 25°C 26A
Rds On (Max) @ Id, Vgs 31 mOhm @ 5A, 10V
Vgs(th) (Max) @ Id 2.1V @ 1mA
Gate Charge (Qg) (Max) @ Vgs 27.3nC @ 5V
Input Capacitance (Ciss) (Max) @ Vds 3168pF @ 25V
Power - Max 64W
Operating Temperature -55°C ~ 175°C (TJ)
Mounting Type Surface Mount
Package / Case SOT-1205, 8-LFPAK56
Supplier Device Package LFPAK56D
Shipment UPS/EMS/DHL/FedEx Express.
Condtion New original factory.
RFQ Email [email protected] or Inquires online
