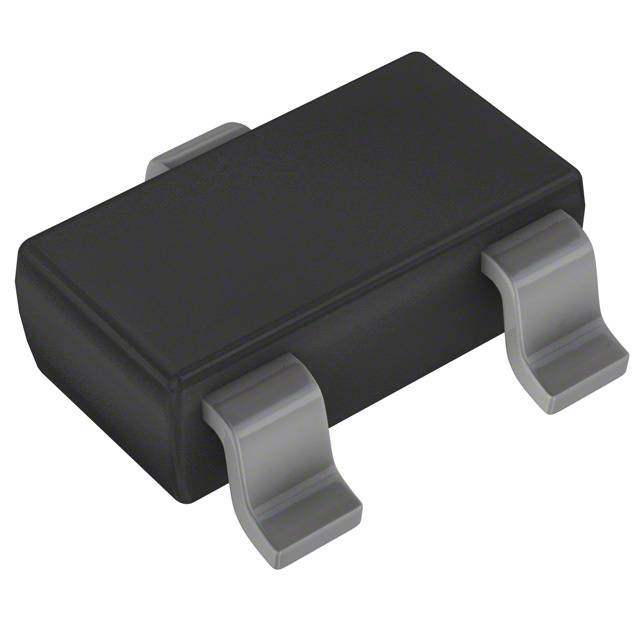

BAV199-7-F

Buy the BAV199-7-F Diodes Incorporated on Chip Source Co., LIMITED,we are Diodes Incorporated Corporation distributor,we sales new&original and offer 24 hours service,180 days warranty date, send the BAV199-7-F within 24 hours,please contact our sales team or send email to sales@hkchipsource.com Hope we can cooperate in the future.
  • Manufacturer: Diodes Incorporated
  • Description: DIODE ARRAY GP 85V 140MA SOT23-3
  • Category: Discrete Semiconductor Products
  • Family: Diodes - Rectifiers - Arrays
  • Series: -
Availability: In Stock
Please send RFQ , we will respond immediately.

Specifications

Part Status
Active
Diode Configuration
1 Pair Series Connection
Diode Type
Standard
Voltage - DC Reverse (Vr) (Max)
85V
Current - Average Rectified (Io) (per Diode)
140mA (DC)
Voltage - Forward (Vf) (Max) @ If
1.1V @ 50mA
Speed
Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr)
3µs
Current - Reverse Leakage @ Vr
5nA @ 75V
Operating Temperature - Junction
-65°C ~ 150°C
Mounting Type
Surface Mount
Package / Case
TO-236-3, SC-59, SOT-23-3
Supplier Device Package
SOT-23-3
Shipment
UPS/EMS/DHL/FedEx Express.
Condtion
New original factory.
Information on technical characteristics, the delivery set, the country of manufacture and the appearance of the goods is for reference only and is based on the latest information available at the time of publication.
