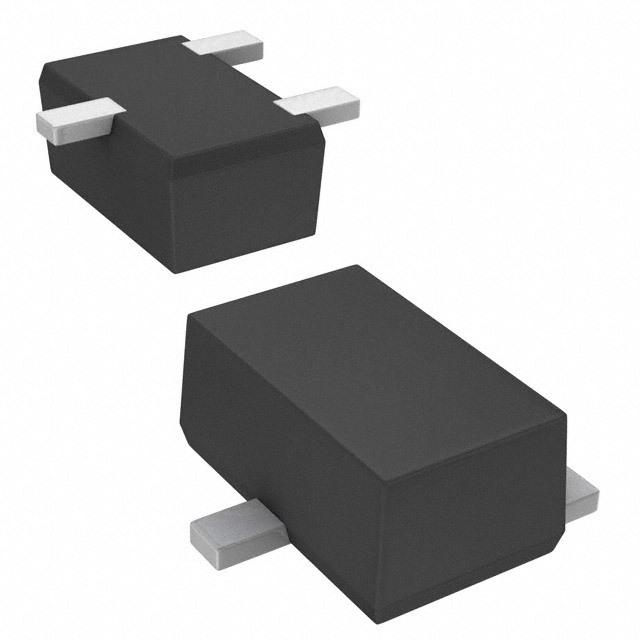

DA3J101F0L Images are for reference only, See Product Specifications
| Part Number | DA3J101F0L |
|---|---|
| Manufacturer | Panasonic Electronic Components |
| Description | DIODE ARRAY GP 80V 100MA SMINI3 |
| Data sheet |  DA3J101F0L.pdf |
| Category | Discrete Semiconductor Products |
| Family | Diodes - Rectifiers - Arrays |
| Series | - |
Buy the DA3J101F0L Panasonic Electronic Components on Chip Source Co., LIMITED,we are Panasonic Electronic Components Corporation distributor,we sales new&original and offer 24 hours service,180 days warranty date, send the DA3J101F0L within 24 hours,please contact our sales team or send email to [email protected] Hope we can cooperate in the future.
| Part Status | Active |
|---|---|
| Diode Configuration | 1 Pair Series Connection |
| Diode Type | Standard |
| Voltage - DC Reverse (Vr) (Max) | 80V |
| Current - Average Rectified (Io) (per Diode) | 100mA (DC) |
| Voltage - Forward (Vf) (Max) @ If | 1.2V @ 100mA |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Reverse Recovery Time (trr) | 3ns |
| Current - Reverse Leakage @ Vr | 100nA @ 80V |
| Operating Temperature - Junction | 150°C (Max) |
| Mounting Type | Surface Mount |
| Package / Case | SC-85 |
| Supplier Device Package | SMini3-F2-B |
| Shipment | UPS/EMS/DHL/FedEx Express. |
| Condtion | New original factory. |
| RFQ Email | [email protected] or Inquires online |
