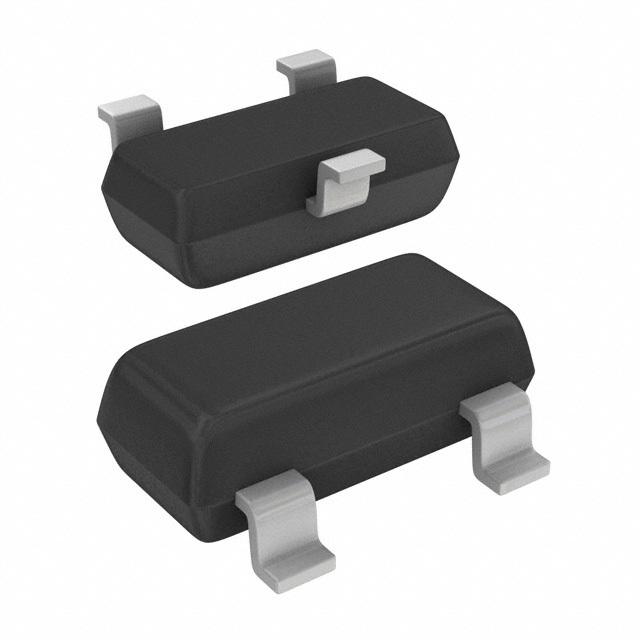

BAV199,215 Images

BAV199,215 Images are for reference only, See Product Specifications

BAV199,215

Part Number BAV199,215
Manufacturer Nexperia USA Inc.
Description DIODE ARRAY GP 75V 160MA SOT23
Data sheet BAV199,215.pdf
Category Discrete Semiconductor Products
Family Diodes - Rectifiers - Arrays
Series -
Request a Quote

Buy the BAV199,215 Nexperia USA Inc. on Chip Source Co., LIMITED,we are Nexperia USA Inc. Corporation distributor,we sales new&original and offer 24 hours service,180 days warranty date, send the BAV199,215 within 24 hours,please contact our sales team or send email to [email protected] Hope we can cooperate in the future.

Specifications

Part Status Active
Diode Configuration 1 Pair Series Connection
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 75V
Current - Average Rectified (Io) (per Diode) 160mA (DC)
Voltage - Forward (Vf) (Max) @ If 1.25V @ 150mA
Speed Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr) 3µs
Current - Reverse Leakage @ Vr 5nA @ 75V
Operating Temperature - Junction 150°C (Max)
Mounting Type Surface Mount
Package / Case TO-236-3, SC-59, SOT-23-3
Supplier Device Package TO-236AB (SOT23)
Shipment UPS/EMS/DHL/FedEx Express.
Condtion New original factory.
RFQ Email [email protected] or Inquires online
