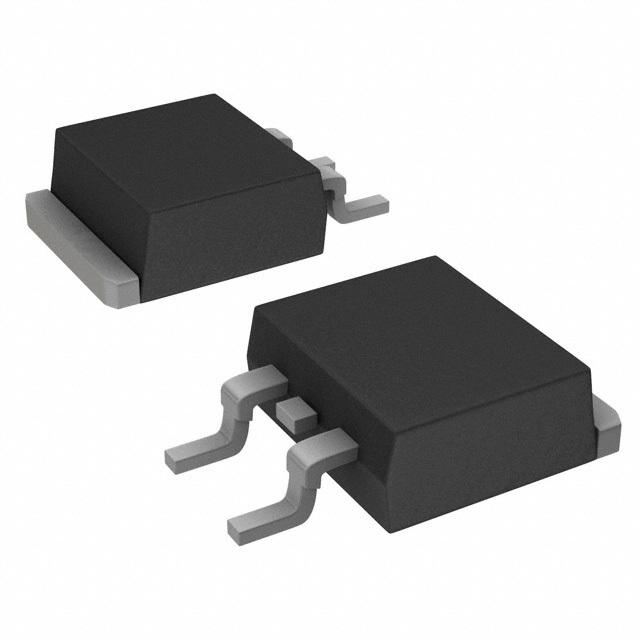

MBRB60H100CTT4G Images

MBRB60H100CTT4G Images are for reference only, See Product Specifications

MBRB60H100CTT4G

Part Number MBRB60H100CTT4G
Manufacturer ON Semiconductor
Description DIODE ARRAY SCHOTTKY 100V D2PAK
Data sheet MBRB60H100CTT4G.pdf
Category Discrete Semiconductor Products
Family Diodes - Rectifiers - Arrays
Series SWITCHMODE™
Request a Quote

Buy the MBRB60H100CTT4G ON Semiconductor on Chip Source Co., LIMITED,we are ON Semiconductor Corporation distributor,we sales new&original and offer 24 hours service,180 days warranty date, send the MBRB60H100CTT4G within 24 hours,please contact our sales team or send email to [email protected] Hope we can cooperate in the future.

Specifications

Part Status Active
Diode Configuration 1 Pair Common Cathode
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 100V
Current - Average Rectified (Io) (per Diode) 30A
Voltage - Forward (Vf) (Max) @ If 840mV @ 30A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) -
Current - Reverse Leakage @ Vr 10µA @ 100V
Operating Temperature - Junction 175°C (Max)
Mounting Type Surface Mount
Package / Case TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package D2PAK-3
Shipment UPS/EMS/DHL/FedEx Express.
Condtion New original factory.
RFQ Email [email protected] or Inquires online
