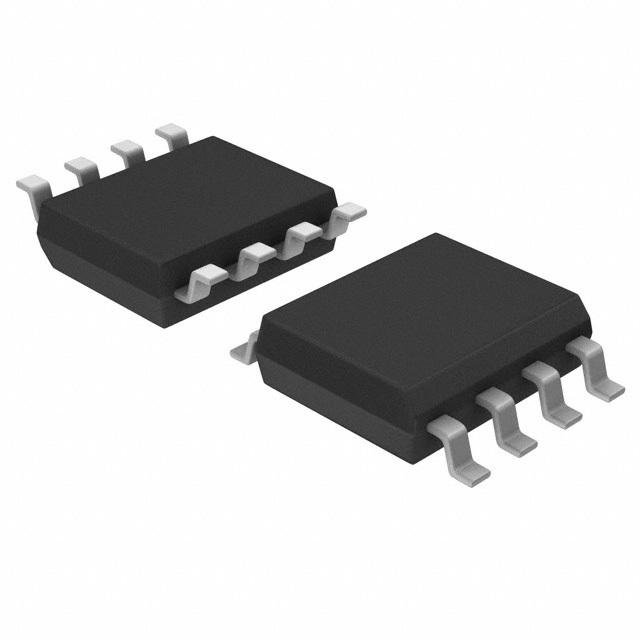

SH8K3TB1

10 Reviews/Write A Review

Buy the SH8K3TB1 Rohm Semiconductor on Chip Source Co., LIMITED,we are Rohm Semiconductor Corporation distributor,we sales new&original and offer 24 hours service,180 days warranty date, send the SH8K3TB1 within 24 hours,please contact our sales team or send email to sales@hkchipsource.com Hope we can cooperate in the future.

Manufacturer: Rohm Semiconductor
Description: MOSFET 2N-CH 30V 7A SOP8
Category: Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Arrays
Series: -

Specifications Description Reviews

Specifications

Part Status

Not For New Designs

FET Type

2 N-Channel (Dual)

FET Feature

Logic Level Gate

Drain to Source Voltage (Vdss)

30V

Current - Continuous Drain (Id) @ 25°C

Rds On (Max) @ Id, Vgs

24 mOhm @ 7A, 10V

Vgs(th) (Max) @ Id

2.5V @ 1mA

Gate Charge (Qg) (Max) @ Vgs

11.8nC @ 5V

Input Capacitance (Ciss) (Max) @ Vds

600pF @ 10V

Power - Max

Operating Temperature

150°C (TJ)

Mounting Type

Surface Mount

Package / Case

8-SOIC (0.154", 3.90mm Width)

Supplier Device Package

8-SOP

Shipment

UPS/EMS/DHL/FedEx Express.

Condtion

New original factory.

RFQ Email

sales@hkchipsource.com or Inquires online

Information on technical characteristics, the delivery set, the country of manufacture and the appearance of the goods is for reference only and is based on the latest information available at the time of publication.
