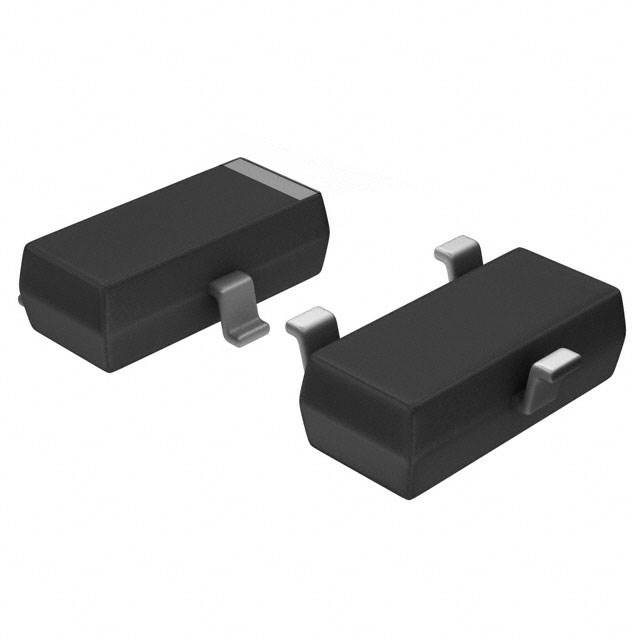

BAV99-E3-08 Images are for reference only, See Product Specifications
| Part Number | BAV99-E3-08 |
|---|---|
| Manufacturer | Vishay Semiconductor Diodes Division |
| Description | DIODE ARRAY GP 70V 150MA SOT23 |
| Data sheet |  BAV99-E3-08.pdf |
| Category | Discrete Semiconductor Products |
| Family | Diodes - Rectifiers - Arrays |
| Series | - |
Buy the BAV99-E3-08 Vishay Semiconductor Diodes Division on Chip Source Co., LIMITED,we are Vishay Semiconductor Diodes Division Corporation distributor,we sales new&original and offer 24 hours service,180 days warranty date, send the BAV99-E3-08 within 24 hours,please contact our sales team or send email to [email protected] Hope we can cooperate in the future.
| Part Status | Active |
|---|---|
| Diode Configuration | 1 Pair Series Connection |
| Diode Type | Standard |
| Voltage - DC Reverse (Vr) (Max) | 70V |
| Current - Average Rectified (Io) (per Diode) | 150mA |
| Voltage - Forward (Vf) (Max) @ If | 1.25V @ 150mA |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 6ns |
| Current - Reverse Leakage @ Vr | 2.5µA @ 70V |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Mounting Type | Surface Mount |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | SOT-23 |
| Shipment | UPS/EMS/DHL/FedEx Express. |
| Condtion | New original factory. |
| RFQ Email | [email protected] or Inquires online |
